Frontal panel protection: IP65.
Container: plastic body in resin type
PC+ABS UL94 V-0, inspection window in
polycarbonate, buttons in thermoplastic
resin.

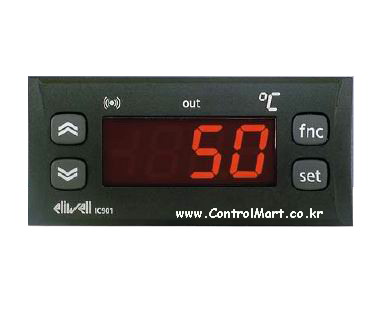

Dimensions: frontal panel 74x32 mm,
depth 60 mm.
Installation: on panel, with template 71x29
mm (+0.2/–0.1 mm).
Ambient temperature: –5…55 °C.
Storage temperature –30…85 °C.
Operating environment humidity: 10…90%
RH (non condening).
Storage environment humidity: 10…90% RH
(non condensing).
Viewing range: –50…99 °C on 2 digit +
mark display.
Analog inputs: one PTC or NTC input
(selectable through parameter).
Digital outputs: one relay output, SPDT
8(3)A 250V a relay or SPDT 15A(1hp)
250V a relay (for capacity relay see label
on the instrument).
Measuring range: from –50 to 99 °C.
Precision: 0.5% better than full scale.
Resolution: 1 °C.
Consumption: according to model.
Power supply: according to model.
See label on instrument. Last updated: 14 March 2005
