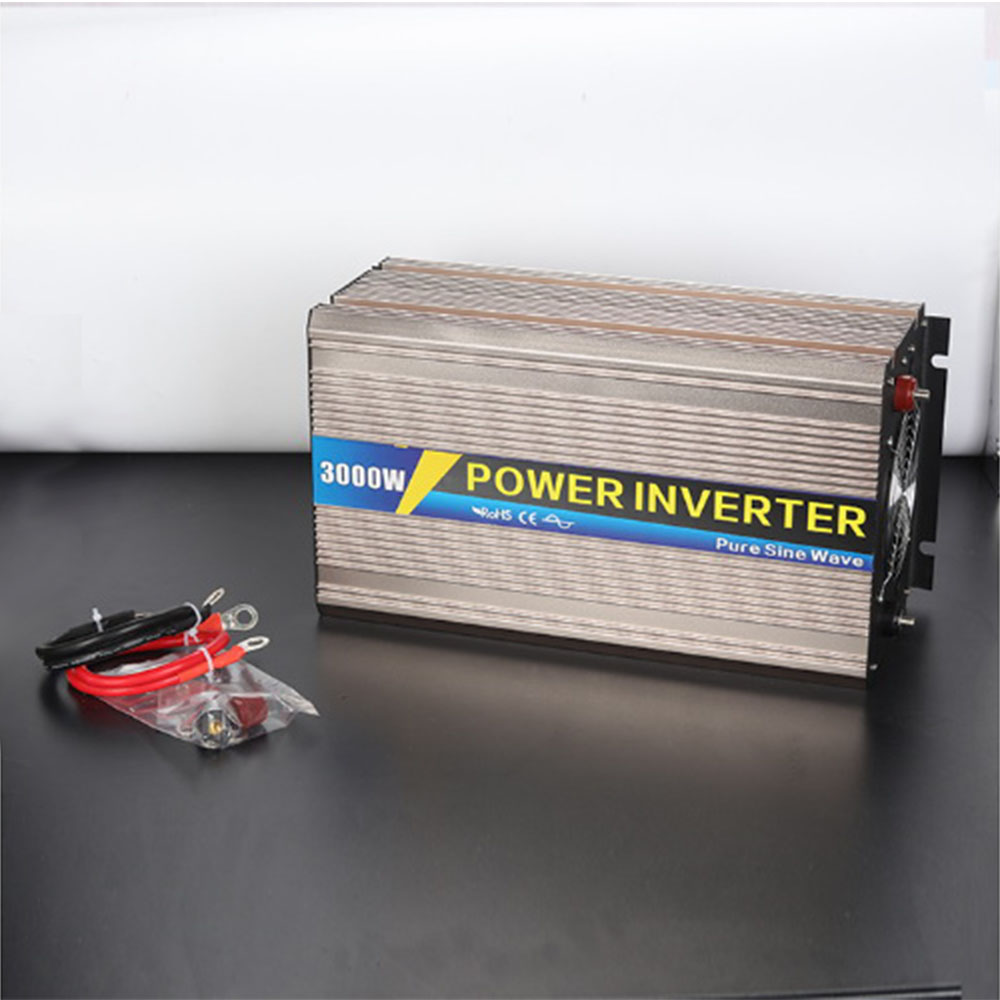

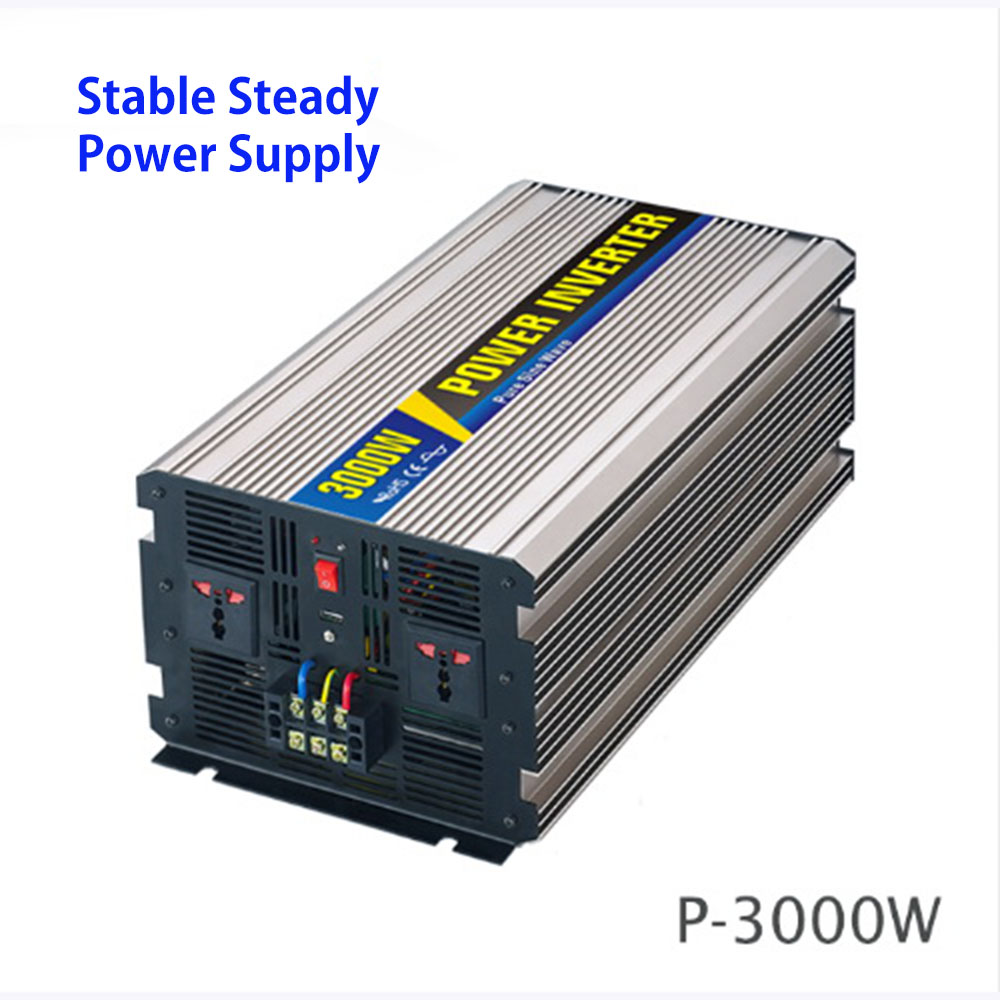

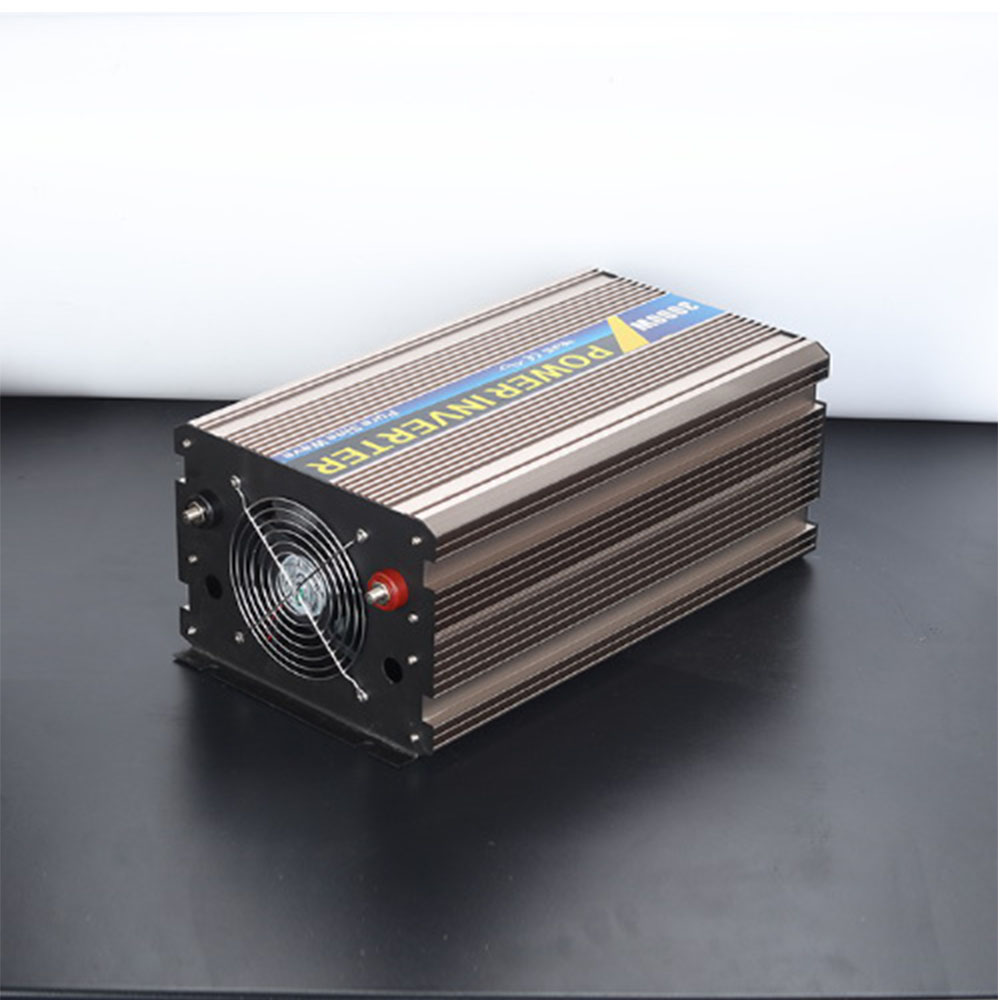

| ※ 24V/3000W/ PWM/태양전지 인버터/독립형/41 x 21.6x 15.6mm/알미늄케이스 |
|
|
제목 없음
|
|
|
|
P-121-3K |
P-241-3K |
P-481-3K |
P-122-3K |
P-242-3K |
P-482-3K |
| Rated power |
3000W |
| Peak power |
6000W |
| Input voltage |
DC12V |
DC24V |
DC48V |
DC12V |
DC24V |
DC48V |
| Output voltage |
100VAC or 110VAC or 120VAC±5% |
220VAC or 230VAC or 240VAC±5% |
| Unload current less than |
1.3A |
0.8A |
0.6A |
1.3A |
0.8A |
0.6A |
| Output frequency |
50Hz±0.5Hz or 60Hz±0.5Hz |
| Output waveform |
Pure Sine Wave |
| Waveform distortion |
THD<3%(Linear load) |
| USB port |
5V 1A |
| Max.efficiency |
90% |
| Input voltage range |
10-15.5V |
20-31V |
40-61V |
10-15.5V |
20-31V |
40-61V |
| Low voltage alarm |
10.5±0.5V |
21±0.5V |
42±1V |
10.5±0.5V |
21±0.5V |
42±1V |
| Low voltage protection |
10±0.5V |
20±0.5V |
40±15V |
10±0.5V |
20±0.5V |
40±15V |
| Over voltage protection |
15.5±0.5V |
31±0.5V |
61±1V |
15.5±0.5V |
31±0.5V |
61±1V |
| Low voltage recover |
13±0.5V |
24±0.5V |
48±1V |
13±0.5V |
24±0.5V |
48±1V |
| Over voltage recover |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
| Protection function |
Low voltage |
Alarm at first, voltage
continously reduce. LED Red light on & shut sown. |
| Over voltage |
LED Red light on, shut down |
| Over load |
LED Red light on, shut down |
| Over temperature |
Alarm at first, tempurature
continously rise.LED Red light on & shut sown |
| Short circuit |
LED Red light on |
| Input reverse polarity |
Fuse burn-out |
| Working temperature |
-10°- +50° |
| Storage temperature |
-30°- +70° |
| Dimension(mm) |
396x180x128 mm |
| Packing(mm) |
475x245x195 mm |
| Net./gross weight(g) |
5880/6710g |
| QTY/Ctn |
4 Pcs |
| Meas./Ctn(mm) |
540x545x445mm |
| Gross weight/Ctn(g) |
27040g |
| Warranty |
1 years |
| Configuration |
Standard |
| Cooling method |
Intelligent air cooling |
| |
|
|
|
|
|
|
| Note: Our products
update constantly.The technical parameter is for reference only.Please refer
to our data sheets enclosed with
products delivered.
|
|
|
|
/
